ZT(P)S Series Phase-Shifted Rectifier Transformer

Short Description:

Frequency control of motor speed in converter transformer is is part of high voltage inverter power supply, plays an isolation, phase shift and the effect of multiple, is one of the core components of high voltage frequency converter, according to the cooling mode can be divided into dry type, oil immersed type two kinds.

Product Detail

Product Tags

Product overview

Converter transformer for frequency conversion and speed regulation is the power supply part of HV frequency converter, which plays the roles of isolation, phase shift and multiplication. It is one of the core components of HV frequency converter and can be divided into dry type and oil-immersed type according to cooling mode.

The insulation grade of dry type converter transformer for frequency conversion and speed regulation produced by our company is H. New insulation structure and advanced technology are adopted in the structural and electrical design to improve the short-circuit resistance and electrical strength, making more reliable performance. In the design process, the influence of harmonics generated by rectifying elements on transformer windings and iron cores is fully considered. Sufficient margin enables the windings and iron cores to withstand the additional temperature rise generated by harmonics and keep low noise, thus ensuring service life of the transformer.

When designing and manufacturing, the winding temperature rise caused by harmonics is fully considered, thus effectively ensuring service life of the transformer; VPI (Vacuum Pressure) is dipped in paint and cured at high temperature, making good moisture-proof, dust-proof and pollution-proof effects as well as ensuring reliability of the transformer. The selected materials have undergone strict quality inspection, and all raw material manufacturers are strictly examined according to ISO9001. The product has the characteristic of high reliability and is used in large quantities with 6-pulse, 12-pulse, 18-pulse and multi-pulse frequency converters. Special design and manufacturing plan can be customized according to the type of inverter, rectifier and user requirements.

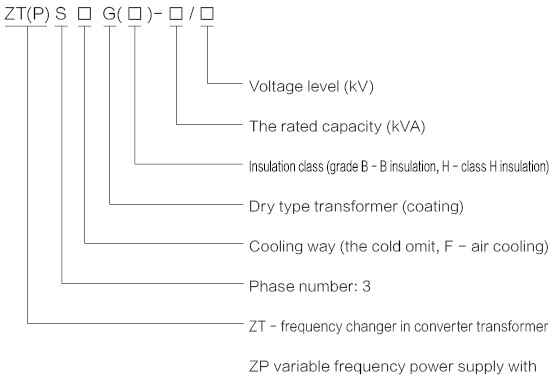

Types of meaning


 Phase-Shifted Rectifier Transformer Manufacturer

Zhejiang Pengbian Electric Co., Ltd. is located in China’s electrical capital, is a collection of high-tech at home and abroad in one, the development and production of power transmission equipment key enterprises.

The company has advanced production equipment and exquisite manufacturing technology, specializing in the production of dry type transformer, oil-immersed transformer, special transformer, all kinds of reactor, wind power, photovoltaic transformer substation, substation transformer core, European-style box-type substation, American box transformer substation, high and low voltage complete sets of electrical equipment, power transmission and transformation equipment such as high and low voltage switchgear. Products should be widely in electric power, railway, industrial and mining enterprises, shipping, etc.
