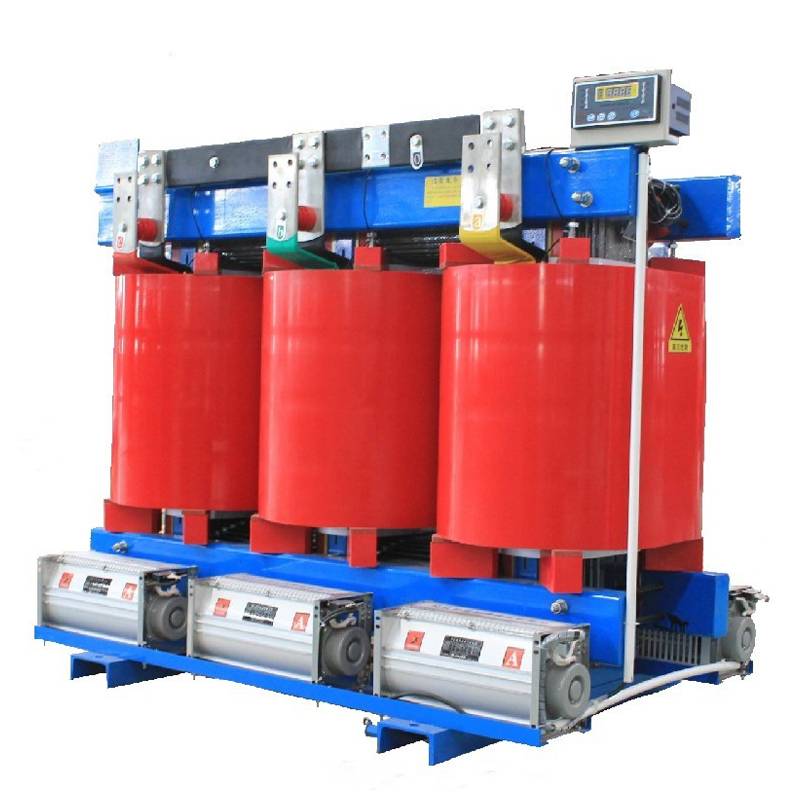

Scbh15 Amorphous Metal Dry Type Cast Resin Transformer

Short Description:

Amorphous alloy dry-type transformer no-load loss is 75% lower than GB/T10228 table 4 group 1, and load loss is 15% lower than GB/T10228 table 4. It is the most advanced energy-saving dry-type transformer in the contemporary era.


Product Detail

Product Tags

Model meaning

Model SCBH15-/

S C B H 15
Three-phase Formed solid casting coil Low voltage “foil” coil Amorphous alloy core Loss level code Rated capacity (kVA) Voltage level (kV)

Use environment

Ambient temperature: -5℃~+40℃
Average temperature of the hottest month +30℃
The hottest annual average temperature +20℃
The altitude does not exceed 1000m
The waveform of the power supply voltage is similar to a sine wave
The three-phase power supply voltage should be roughly symmetrical
No obvious pollution in the installation environment
Indoor use

Product Standards

GB/T22072-2008 GB1094.11-2007
Rated high voltage: 10 (10.5, 11, 6, 6.3, 6.6) kV
Rated low voltage: 0.4kV
Tap range: non-excitation voltage regulation (±5%, ±2×2.5%)
On-load voltage regulation: (±4×2.5%)
Connection group: Dyn11 or YynO
Insulation level: LI75AC35/AC5

Product Usage

This product possess such advantages as low no-load loss, no oil, flame retardation and self-extinguishing, moisture resistance, crack resistance, maintenance-free etc. can be used to replace all common dry-type transformers which now are used in many places. They can used in high buildings, commerce centers, subways, airports, train stations, enterprises and power plants, they are especially suitable for installing and using in such places where strict fireproof requirements, including anti-combustible and anti-explosive, must be meet.

Main technical data for 30kVA-2500kVA dry type amorphous alloy core distribution transformer

Rated capacity
(kVA)
Voltage Vector group No-load
Loss
(W)
On-load
Loss
(W)
No-load
Current
(%)
Impedance
Voltage
(%)
High voltage
(kV)
HV tap range
(%)
Low voltage
(kV)
30 6
6.3
6.6
10
10.5
11
±5±2×2.5% 0.4 Dyn11 70 710 1.6 4
50 90 1000 1.4
80 120 1380 1.3
10 130 1570 1.2
125 150 1850 1.1
160 170 2130 1.1
200 200 2530 1.0
250 230 2760 1.0
315 280 3470 0.9 6
400 310 3990 0.8
500 360 4880 0.8
630 420 5880 0.7
630 410 5960 0.7
800 480 6960 0.7
1000 550 8130 0.6
1250 650 9690 0.6
1600 760 11730 0.6
2000 1000 14450 0.5
2500 1200 17170 0.5
1600 760 12960 0.6 8
2000 1000 15960 0.5
2500 1200 18890 0.5

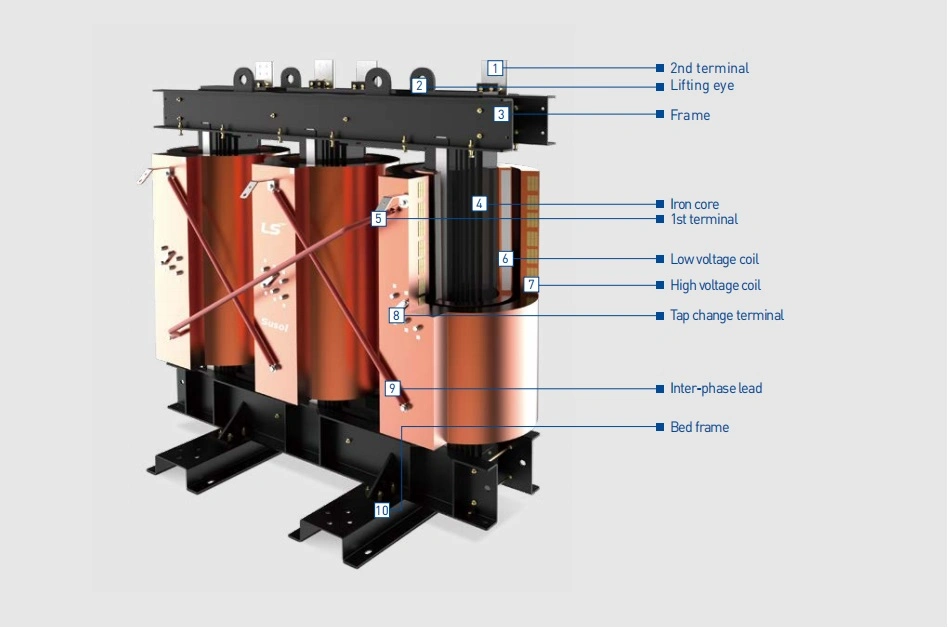

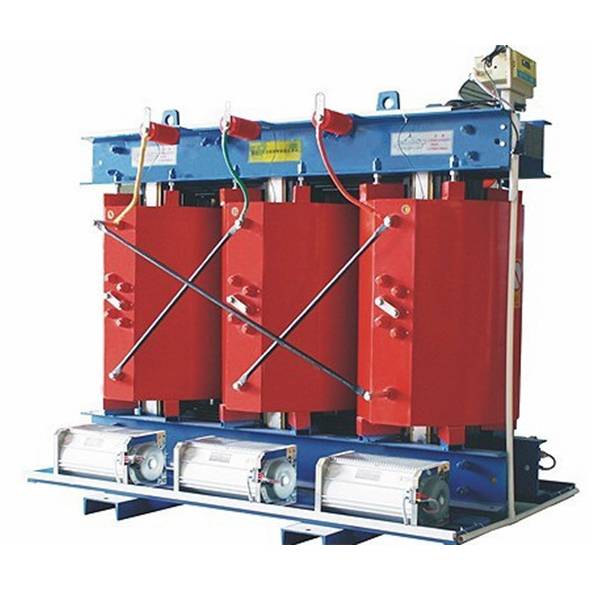

Transformer Structure

Scbh15 Dry Type Transformer for Voltage Regulator Units as Electric Component
