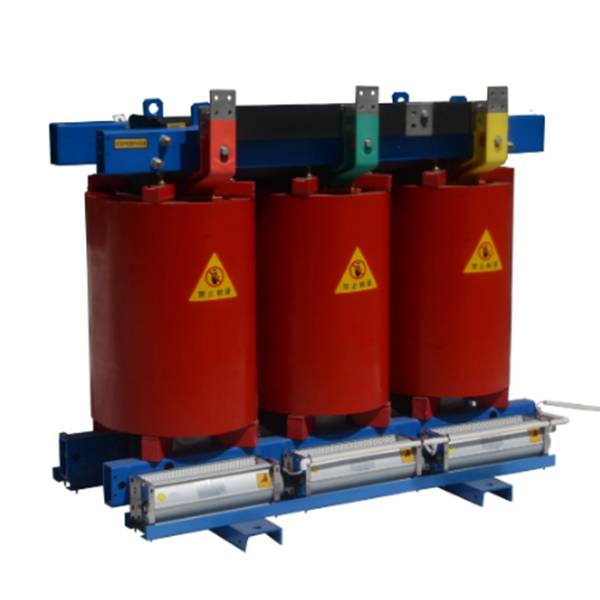

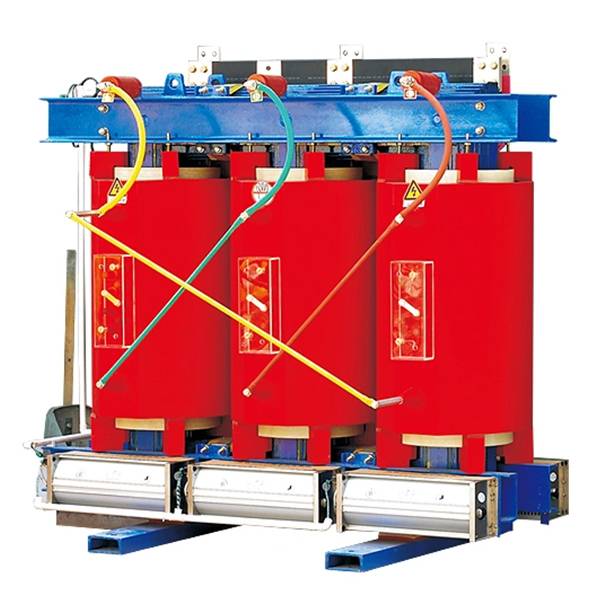

Sc (B) 10-Rl 10kv Three-Dimensional Coil Core Dry Type Transformer

Short Description:

As the coils of resin-insulated dry-type transformer are encapsulated by the epoxy resin, they are nonflammable, fireproof, explosion-proof, maintenance-free, no pollution, small volume, and can be installed in the load center directly. Meanwhile, the scientific and reasonable design and casting technology enable the products to have lower discharge capacity, low noise and strong heat dissipation, they are able to run for a long time under 140% rated load under forced air cooling condition. Besides, the products are equipped with intelligent temperature controllers, have functions of trouble alarm, over-temperature alarm, over-temperature tripping and black box, can be connected with the computer through RS485 serial interface to realize centralized monitoring and control.


Product Detail

Product Tags

OEM&ODM Service 125kva 3 Phase 300 Kva Dry Type Transformer

SCBH15 series amorphous alloy Dry-Type transformer has advanced performance in following points: low no-load loss, fire resistance and self-extinguishing, moisture resistance and maintenance-free.

Due to the above features, our epoxy resin casting dry type transformers can be widely applied to power transmission and transformation systems in hotels, restaurants, airports, high-rise buildings, commercial centers, residential districts, and the severe environments such as underground railways, smelting, electric power plants, steamships, offshore oil-drilling platforms, etc.

Model meaning

Model

SC (B)□-RL-□/□













SC

(B)

RL

Three-phase solid molding (epoxy casting)



Copper “foil” coil

Production performance level code

Three-dimensional wound core products



Rated capacity (kVA)

High voltage side voltage level (kV)

Technical parameters

Rated capacity Voltage combination Connection group Loss (KW) No-load current Short-circuit impedance Weight (kg)
(kVA) HV(kV) High-voltage tapping range LV(kV) symbol No-load On-load(120°) (%) (%) Body weight Weight with shell
30 6
6.3
6.6
10
10.5
11
±5%
±2×2.5%
0.4 Yyn0
Dyn11
0.22 0.75 3.2   4.0 220 250
50 0.31 1.05 2.8 360 410
80 0.42 1.46 2.6 450 190
100 0.45 1.67 2.4 540 580
125 0.53 1.95 2.2 630 670
160 0.61 2.25 2.2 745 795
200 0.70 2.67 2 850 910
250 0.81 2.92 2.2 1010 1065
315 0.99 3.67 1.8 1235 1295
400 1.10 4.22 1.8 1370 1430
500 1.35 5.17 1.8 1565 1625
630 1.51 6.22 1.6 1855 1930
630 1.46 6.31 1.6 6.0 1800 1875
800 1.71 7.36 1.6 2140 2215
1000 1.99 8.60 1.4 2535 2620
1250 2.35 10.26 1.4 3100 3190
1600 2.75 12.42 1.4 3705 3830
2000 3.74 15.30 1.2 4230 4380
2500 4.50 18.18 1.2 5230 5280

Our Services

1.Customer orders areavailable(accept OEM)
2.We will replace the defective parts with new parts  in the next order
3.Price is negotiable for orders of large quantity
4.Track the order everyday until you get the goods
5.Aim to build long term bussiness relationship

Product Standards

GBAT10228-2015 GB1094.11-2007
Rated high voltage: 10 (10.5, 11, 6, 6.3, 6.6) kV
Rated low voltage: 0.4kV
Tap range: non-excitation voltage regulation (±5%, ±2×2.5%)
On-load voltage regulation: (±4×2.5%)
Connection group: Dyn11 or YynO
Insulation level: LI75AC35/AC5

Product advantages

1.Super low consumption, energy economized, high power rate
2.Amorphous Alloyed material can tremendously reduce the power consumption and loss. The motor with this material will discharge much less SO、CO gases, which to a large extent decelerates the pollution and greenhouse effect.
3.Operating temperature stays low, insulation aging slow, transformer service life’s long
4.Wonderful overload capability, and excellent mechanical strength
5.Good Harmonic-bearing capability. When the amorphous core cross through the high-frequency flux, the motor can still work in a low core loss and low excitation current way. So that the core saturation problem can be avoided.
6.Benefit on investment returns quickly
