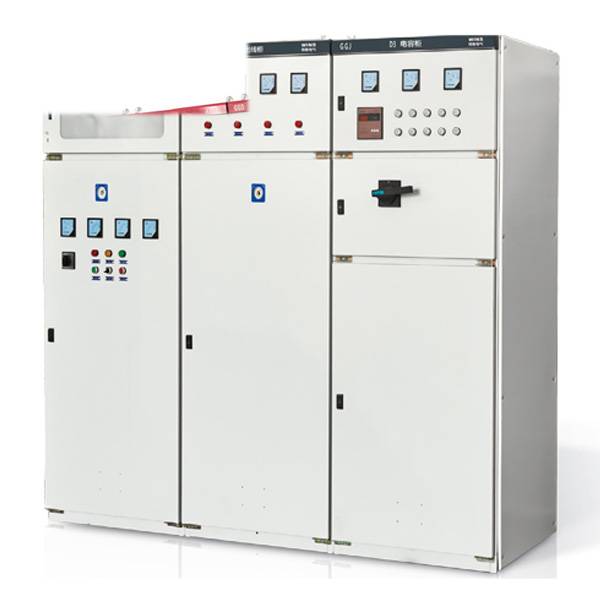

GGD Series AC Low Voltage Switchgear

Short Description:

Place of Origin: Zhejiang, China, Zhejiang, China

Model Number: GGD

Color: White

Product name: Factory Price GGD Series LV Electric Power Distribution Transmission S

MOQ: 1pcs

OEM: Offered

Frequency: 50 Hz

Rated Voltage: 660V

Rated current: 4000A

Standard: IEC439/GB7251.1

Protection Level: IP30/IP40/IP54

Rated Capacity: 2500kVA

Send email to us Download as PDF

Product Detail

Product Tags

Overview

GGD type low voltage fixed switchgear is suitable for power users such as power plant substation,
industrial and mining enterprises as power conversion, distribution and control of power, lighting and distribution equipment inpower distribution system with AC 50Hz, rated working voltage 380V and rated current up to 3150A.
The product has high breaking capacity, rated short-time tolerance current up to 50kA.The line scheme has the characteristics of clever words, convenient combination, strong practicability and novel structure.This product is one of the representative products of the assembled and fixed panel switchgear in China.
This product conforms to: GB7251 “low voltage switchgear and control equipment”, IEC439 “low voltage switchgear and controlequipment” and other standards.

Model meaning

MODEL: GGD □ □ □	G:	AC low-voltage power distribution cabinet
	G:	Fixed installation and fixed wiring of electrical components
	D:	Power cabinet
	□：	Design serial number: Breaking capacity is 15kA; Breaking capacity is 30kA; Breaking capacity is 50kA
	□：	Main circuit scheme code
	□：	Auxiliary circuit scheme code

Technical parameter

model	nominal voltage（V）	rated current（A）	Rated short circuit breaking current	Rated short circuit tolerance current	Rated peak tolerable current
GGD-1000-15	380	1000	15	15	30
		600（630）
		400
GGD-1600-30	380	1500（1600）	30	30	63
		1000
		600
GGD-31500-50	380	3150	50	50	105
		2500
		2000

The use of conditions

1. Ambient temperature
2. Altitude
3. Relative humidity2000m and below.Not more than 50% at a maximum temperature of +40° C, and greater relative humidity is allowed at lower temperatures:(e.g. 90% at +20P) should be taken into account due to A change in temperature may have an occasional effect on condensation.
4. The inclination between the equipment and the vertical plane shall not exceed 5.
5. The equipment should be installed in the place where there is no severe vibration and impact, and where the electrical
components are not corroded.
Note: if If the above conditions cannot be met, the user can negotiate with the company to solve the special requirements.
